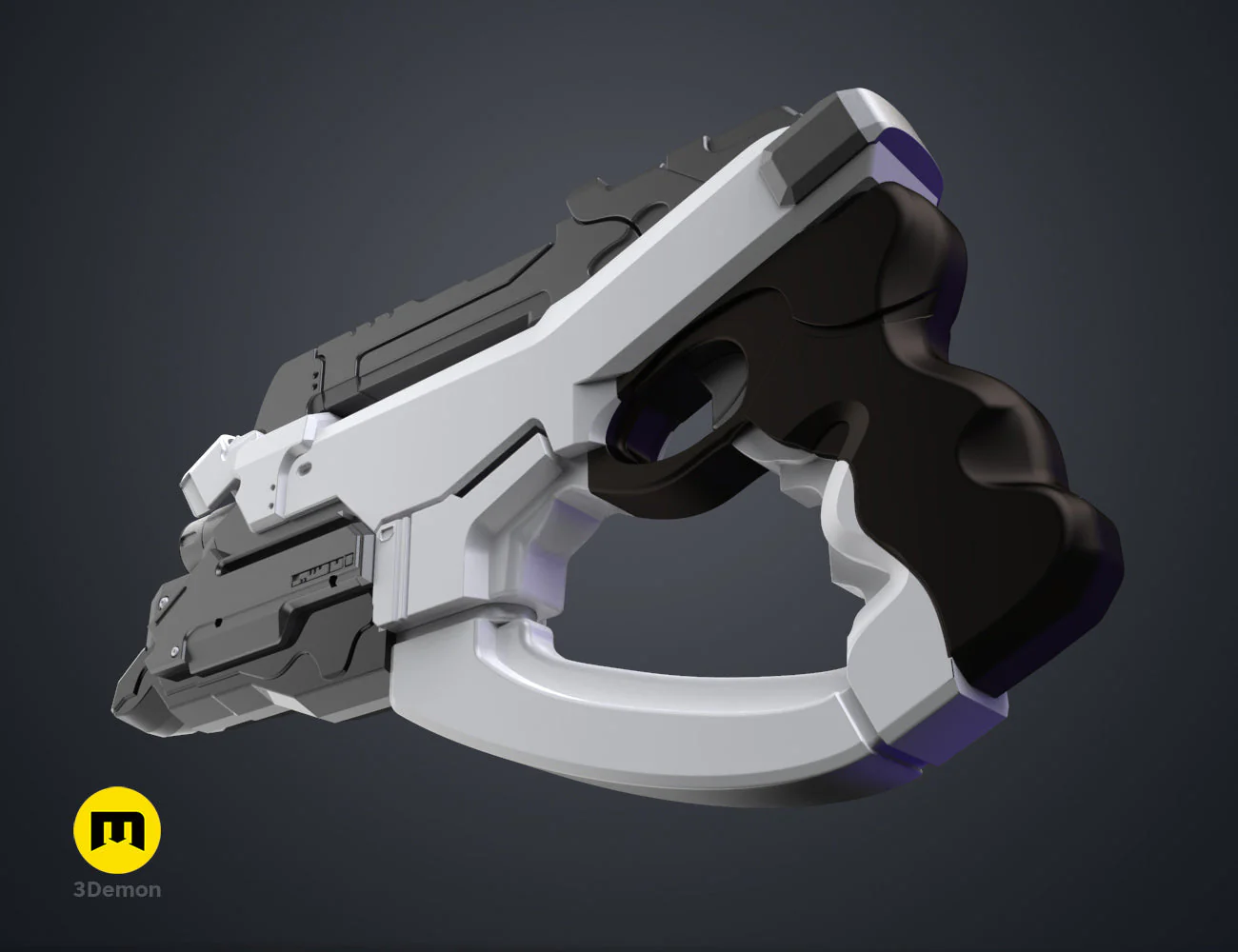

This is a digital 3D printable model of the M-5 Phallanx gun from Mass Effect 3.

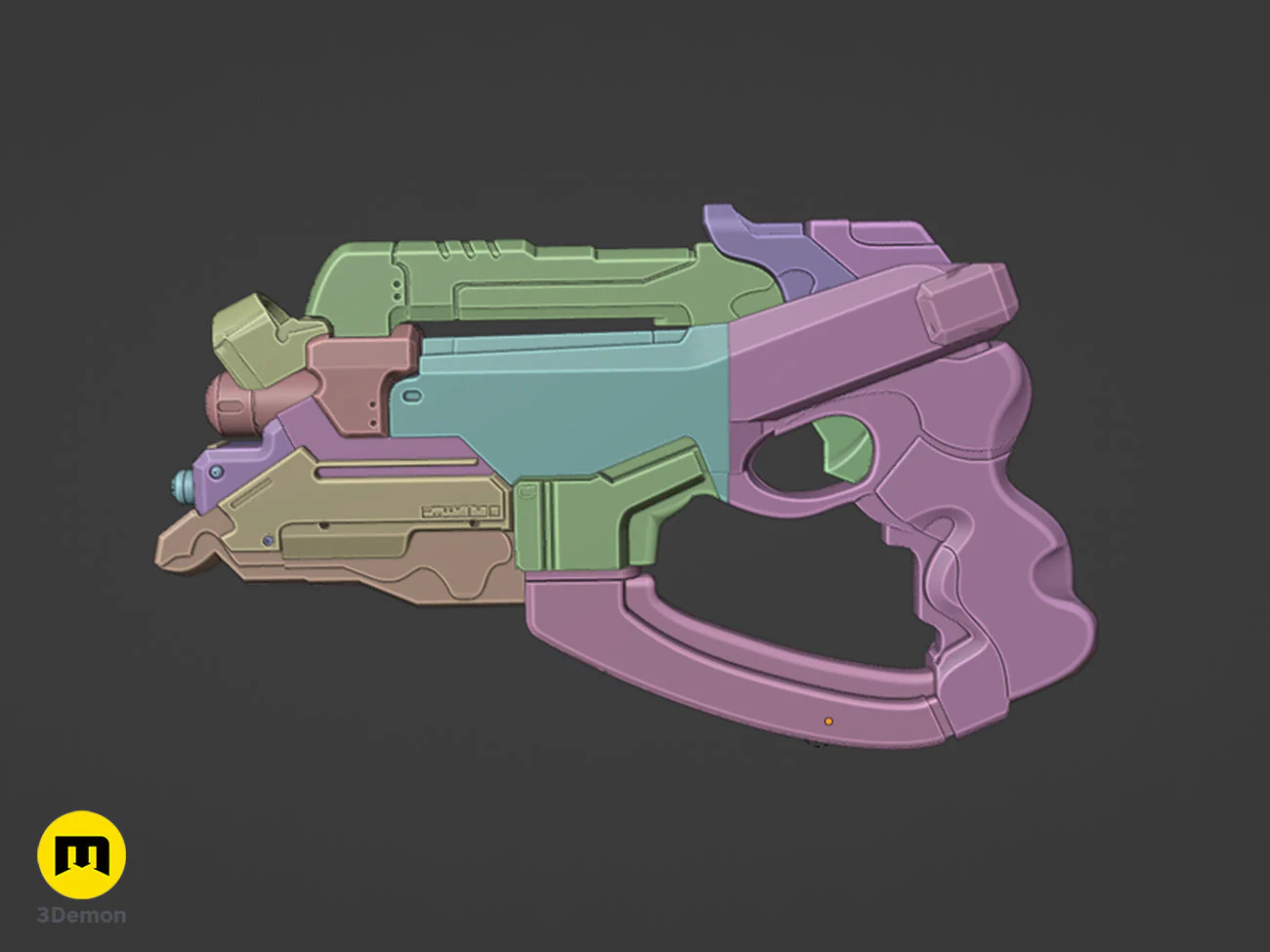

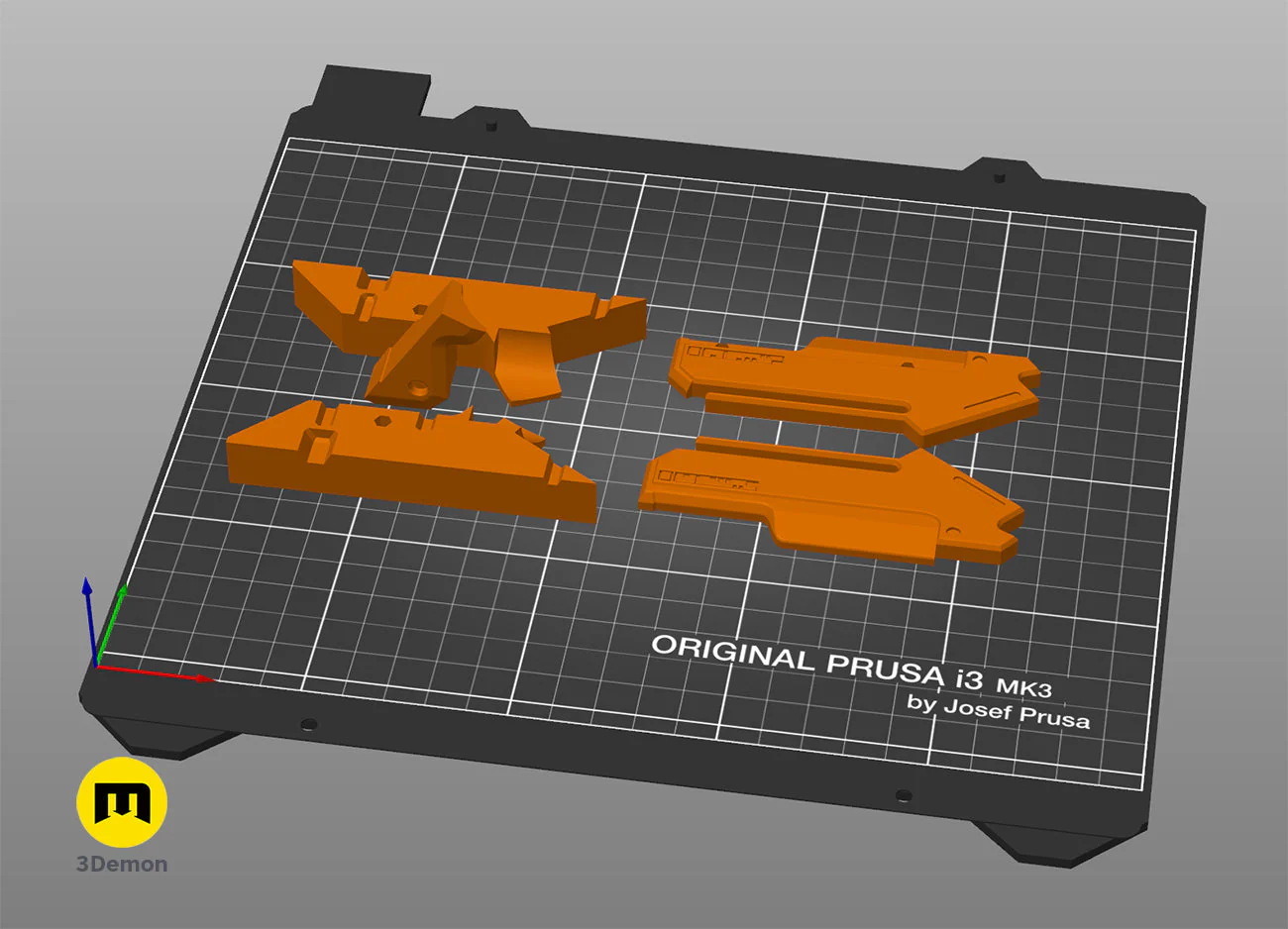

The download contains pieces of the model ready to be 3D printed on a 200 mm print bed and files that are not cut into smaller pieces. All cut parts are placed on the print bed as we would print them to save you time.



📏 3D Model Dimensions

At 100% scale the model’s dimensions are approximately:
Width 310 mm
Length 40 mm
Height 180 mm
You can scale the model as you wish but we can’t guarantee that at a much smaller size the model will print well.

🖨️ 3D Printing Settings

We use these settings for most of our prints:
Layer height 0.2 mm
Infill 15%
Supports 45°
For parts that are tall but have a small base, we use a 10 mm brim for better bed adhesion.

We try to make the models in a way that uses as little support material as possible.
This model is meant to be post-processed after printing. This can be gluing, sanding, painting, etc.

Printing settings will vary greatly depending on your specific printer.

This fan-made model was brought to life by 3Demon. We are a group of modeling and 3D printing enthusiasts based in Prague, Czech Republic. We’ve been making 3D printable models for more than a decade. We make a lot of cosplay accessories but we also make all sorts of interesting 3D models. You can join our community or just look at more of our creations here.
